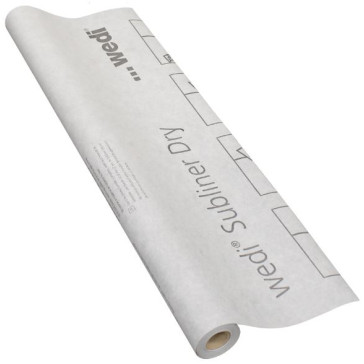

WEDI SUBLINER DRY 5mX 1m

General product description
Waterproof and vapour retarding, thin-layer, crack isolating
sheet membrane made from highly tear-resistant
polyethylene film, which offers optimum connection to tile
laying materials thanks to its dual-sided special fleece
lamination. The installation over suitable pre-existing wall and
floor surfaces and subfloors is smooth and creates a strong
layer of protection with highest tear resistance while causing
exceptionally little build up in critical areas such as corners.
Any thinset mortars suitable for the tile or stone finish or subsurface may be used on top of the wedi Subliner system or
below.
The wedi Subliner Dry System includes wedi Sheet
membrane, sealing tape, prefabricated corner tapes and
plumbing fixture collars as well as bonding flange drains in a
variety of options.
wedi Subliner Dry provides a waterproof tileable surface over
suitable pre-existing wall and floors. Use Subliner Dry in
combination with ceramic and porcelain tiles, slabs, and
natural cast tiles for indoor wall and floor areas.
Areas of application
• General waterproofing and protection over suitable
surfaces prior to tiling
• New Construction of Residential/Commercial use buildings
• Renovation in Residential/Commercial use buildings
• Over non waterproof shower surfaces such as mortar bed
shower bases and cement or gypsum based wall backing
• Over wooden or concrete substructures on floors
Product features
• 100% waterproof including entire assembly with
sheet seams treated with wedi joint sealant.
• 100% mold and mildew proof due to the product ‘s
natural composition.
• Exceptional Vapor retarding performance according to
ASTM E96 ( Method E,; desiccant method at 100°F
and 90% RH) determined at 0.05 Perms and
exceeding all industry requirements
• Easy and clean to cut to size using a utility knife or
scissors. Gridlines and installation tips printed on the
product support efficient working.
• No limitation to use of cement based thinset mortars
and grouts. Product works perfectly with
polyurethane or epoxy based grouts. Wedi
recommends the use of modified thinset mortars of
class ANSI 118.4 in most common applications and
especially where non – absorbing and/ or smooth
backing tile is used.
