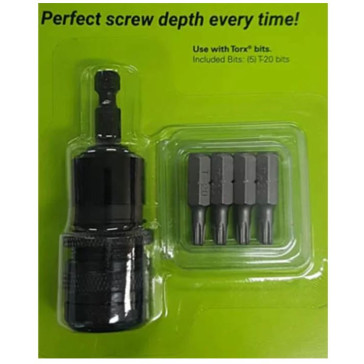

XTG MODWOOD DECK SCREW DEPTH SETTER

ModWood Deck Screw Depth Setter drives screws to the perfect depth – flush or below the work surface – everytime. It is adjustable and easy to use on decks and general construction. The tools Auto-stop mechanism sets the screw at the target depth, without stripping the screw recess. A free spinning stop collar with a rubber O-ring protects the work surface from damaging or marking. The depth Setter works with Phillips and Torx bits and is designed for use with ModWood fasteners and other screw products.

Setting Screw Depth: Loosen Locking RRing (A) and set screw depth by moving the Adjustment Ring (B) to the desired position. The adjustment ring must engage at least two full threads of the tool body. Secure the Adjustment Ring (B) with Locking Ring (A). Check the depth by test on a piece of scrap material.

Correct Use: Use a standard drill; do not use an impact drriverr. Drill in a straight and stable fashion. The scrrew is set when the Auto-Stop mechanism engages fully (making a “pop” sound in most materials).

Replacing Driver Bit: Disconnect powerr an retract the tool fully; remove the bit with pliers. To insert a new bit, retract the tool fully and insert the bit all the way into the tool.

Warning To reduce the risk of injury, follow the instructions of your power tool manufacturer and use safety glasses.
